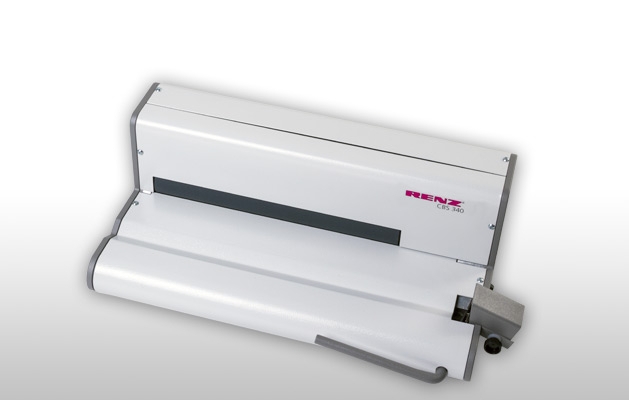

CBS 340 Spiraalmachine

Standalone coil inserting and crimping machine for coil elements from ø 6 mm - 20 mm independent of pitch.

Deze spiraalmachine past op het onderblok, de DTP340 M

MANUAL

instructievideo

Maximum:

Width
360 mm

Bind up to
16 mm

Output:

Max. bound products per hour
80



Pitch	6 mm / 0.2475”
Binding thickness	1 - 16 mm
Binding element Ø	6 - 20 mm
Min. binding width	10 mm
Max. binding width	340 mm
Binding operation	Electric insert, manual crimp and cut
No. of books output per hr	80
Machine dimensions L x W x H	450 x 100 x 160 mm
Machine weight	9.5 kg
Machine packing dimensions L x W x H	620 x 480 x 345 mm
Power requirement	230/250 V / 50 Hz / 90 W 115/200 V / 60 Hz / 90 W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
