APSI 420 Spiraal Bindmachine Renz Electrisch

€ 0,00 (exclusief btw 21%)
Specificaties
Productcode 49480200305-420
Productcode leverancier Renz Gmbh
Omschrijving

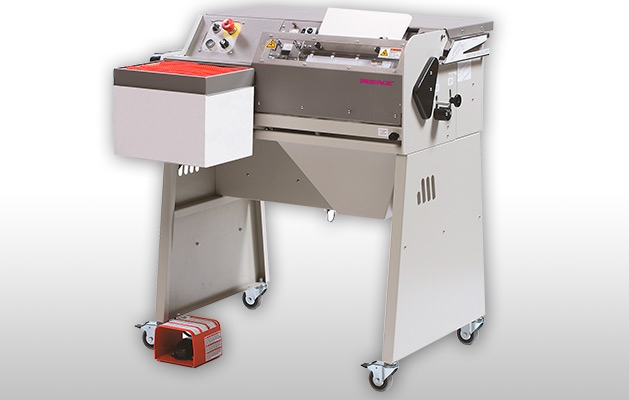

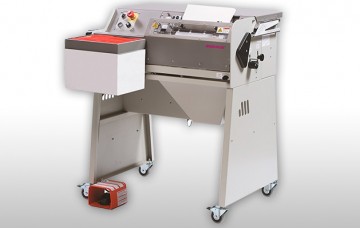

APSI 420  Spiraal Bindmachine Renz Electrisch

PRIJS OP AANVRAAG!

Deze machines vragen om advies op maat.

Online verstrekken we u alvast MANUAL en VIDEO.

Voor contact mail ons naar: sales@officeknallers.nl



Automatic coil inserting machine. Inserts pre-cut lengths of coil into the pre-punched book blocks. For all types of plastic coil book production.

  • A3/17“ model
  • Automatic insertion of pre-cut coil
  • Crimping of both ends simultaneously
  • Quick adjustment for high flexibility of different product formats
  • No tools required for basic setup and changeover
  • Vertical book placement can accommodate tabs

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

(1) Subject to the coil pitch used and machine model/configuration
- A4 (12“) = 305 mm, A3 (17“) = 430 mm.

Maximum:
Width

Width
430 mm

Binds up to

Binds up to
26 mm

Output:
Max. bound products per hour

Max. bound products per hour
600



Built in coil sizing gauge.

The APSI 420 offers a built in coil sizing gauge to help the operator confirm the diameter of coil required in relation to the book thickness.

Vertical book placement. APSI 420 has gravity working to its advantage. The pre-punched book is positioned in the machine on its spine meaning that tabs or wider covers are no problem.

Coil diameter changeover The APSI 420 does not require tools for basic setup and changeover. The APSI innovative coil diameter adjustment provides easy and accurate positioning.

Built-in spine former storage. Spine formers are what the pre-punched book sits on when it is positioned in the machine. The spine formers correspond to the diameter of coil being used. The spine formers are stored securely within the machine.

The APSI 420 offers convenient built-in storage rack for optional pitch platen / comb changeover kits and the tool kit.

As your coil requirements grow, so can your equipment. The APSI 420 can be linked to a former to expand your capabilities to include in-house coil manufacturing with automated finishing. The Inline former can be linked with two APSI 420 auto inserters. A modular design that grows with you.





Pitch 0.2475" or 4:1 or 6 mm for coil Ø 6 - 20 mm 3:1 or 2.5:1 for coil Ø 23 - 30 mm
Binding thickness 3.5 - 26 mm (1)
Binding element Ø 6 - 30 mm (1)
Min. binding width 127 mm
Max. binding width 430 mm
Min. unbound edge 127 mm
Max. unbound edge 500 mm
Binding operation Electric insert, cut & crimp
No. of books output per hr 600
Time required for diameter change 5 min
Format change without diameter 2 min
Machine dimensions L x W x H 920 x 610 x 1.070 mm
Machine weight 86 kg
Machine packing dimensions L x W x H 1.140 x 990 x 1.270 mm
Machine weight with packing 125 kg
Compressed air 7 bar
Power requirement 220 V/1.4 Amp
115 V/2.0 Amp
